Engine Coolant Symbol: Meaning, Causes, and How to Fix It

If you’ve ever glanced at your car’s dashboard and noticed a warning light that looks like a thermometer in water, you might have wondered: what does the engine coolant symbol mean in a car? For many drivers, this symbol can be alarming because it indicates an issue with your engine’s cooling system — a problem that shouldn’t be ignored.

In this article, I’ll guide you through the meaning of the engine coolant symbol, the common causes behind it, practical steps to fix it, and even share a real-life case study from my personal experience. By the end, you’ll know exactly how to handle this warning and keep your engine running safely.

What Is the Engine Coolant Symbol?

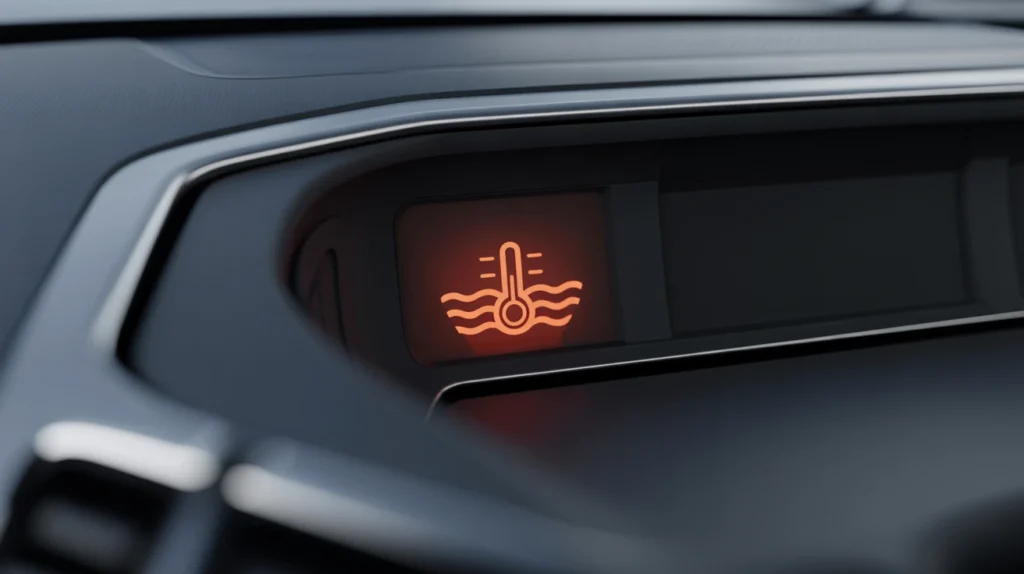

The Engine Coolant Symbol is a dashboard warning light that indicates a problem with your car’s coolant system. It typically looks like a thermometer submerged in liquid or waves, and appears when the coolant level is too low or the engine is overheating.

This symbol is your car’s way of telling you that the engine is at risk of overheating, which can lead to serious damage if ignored. Modern cars often pair this warning with a rising temperature gauge, unusual smells, or reduced heater performance.

Tip: Always refer to your car’s manual to identify how the engine coolant symbol looks for your specific make and model.

Common Causes of Engine Coolant Warning Light

Understanding why the engine coolant symbol appears is essential. Here are the most frequent causes:

1. Low Coolant Levels

One of the simplest yet most common reasons is low coolant. Coolant (a mix of antifreeze and water) circulates through your engine to regulate temperature. If the level drops due to evaporation, minor leaks, or lack of maintenance, the sensor triggers the warning.

Signs of low coolant:

• Coolant reservoir is below the minimum mark
• Sweet smell inside the car (antifreeze odor)
• Heater not producing hot air efficiently

2. Coolant Leaks

Leaks can occur in hoses, radiator, or the water pump. Even a small drip can cause the coolant level to drop and trigger the warning.

How to identify leaks:

• Look for puddles under your parked car
• Inspect hoses for cracks or wear
• Check radiator caps for corrosion

3. Faulty Thermostat

Your thermostat regulates coolant flow through the engine. If it malfunctions, coolant may not circulate properly, causing overheating and triggering the warning light.

4. Faulty Coolant Sensor

Sometimes, the engine coolant warning light appears due to a faulty sensor rather than a real coolant problem. Sensors can fail or send incorrect readings, making it appear like there’s a critical issue.

5. Head Gasket Problems

A blown head gasket can allow coolant to leak into the combustion chamber or oil, causing overheating and triggering the engine coolant symbol. This is a serious issue and requires immediate mechanical attention.

Symptoms of Low Engine Coolant

If your engine coolant warning light comes on, look for these symptoms:

• Rising temperature gauge: Your dashboard thermometer may gradually climb toward the red zone.
• Sweet, unusual smell: Often due to leaking antifreeze.
• Heater issues: Weak or no heat inside the cabin could indicate low coolant.
• Engine noise: Bubbling or gurgling sounds might be caused by air pockets in the coolant system.

Recognizing these early signs can prevent costly repairs and keep your engine safe.

Read Also: 2026 Toyota Camry

How to Fix Engine Coolant Symbol Issues

Now that you know the causes, here are practical steps to address the warning light:

Step 1: Check Coolant Levels

• Ensure your car is cool before opening the reservoir.
• Top up with the recommended coolant type if below the minimum mark.

Step 2: Inspect for Leaks

• Check under the car for puddles.
• Inspect hoses, radiator, and connections for cracks or corrosion.

Step 3: Flush and Refill Coolant

• Over time, coolant can become contaminated or lose its effectiveness.
• A full flush and refill every 2–3 years (or as recommended by your manufacturer) keeps your engine running efficiently.

Step 4: Check the Thermostat and Sensor

• If the light persists despite correct coolant levels, have a mechanic test the thermostat and sensor.
• Replacing faulty sensors or a malfunctioning thermostat can resolve false warnings.

Step 5: Seek Professional Help

• If you notice continuous overheating or suspect a head gasket issue, stop driving and call a trusted garage.

Real-Life Case Study: Avoiding Costly Repairs

A few years ago, a friend of mine noticed the engine coolant warning light flickering while driving to work. He ignored it, assuming it was just a sensor glitch. By the afternoon, his car overheated, resulting in a cracked radiator and a $1,200 repair bill.

The lesson? Immediate attention to the engine coolant symbol can save time, money, and avoid the headache of major engine damage. In this case, topping up the coolant and checking for leaks early would have prevented the problem entirely.

Tips to Prevent Engine Coolant Problems

• Regularly check coolant levels (monthly is ideal).
• Replace coolant at recommended intervals.
• Inspect hoses, radiator, and connections for wear or leaks.
• Keep an eye on dashboard gauges for early warning signs.
• Address any unusual smells or heater issues promptly.

Conclusion

The engine coolant symbol is more than just a dashboard decoration — it’s a crucial warning for your car’s health. By understanding the causes, recognizing symptoms, and taking timely action, you can prevent serious engine damage and ensure your vehicle runs safely.

Remember the case study above: ignoring this warning can be costly. Regular maintenance, timely checks, and addressing warnings immediately will save you both money and stress in the long run.

Pro Tip: Keep a spare coolant bottle in your car for emergencies — and always follow safety guidelines when topping up coolant.

Learn more about the latest performance features and specs of the 2025 Corvette ZR1.
